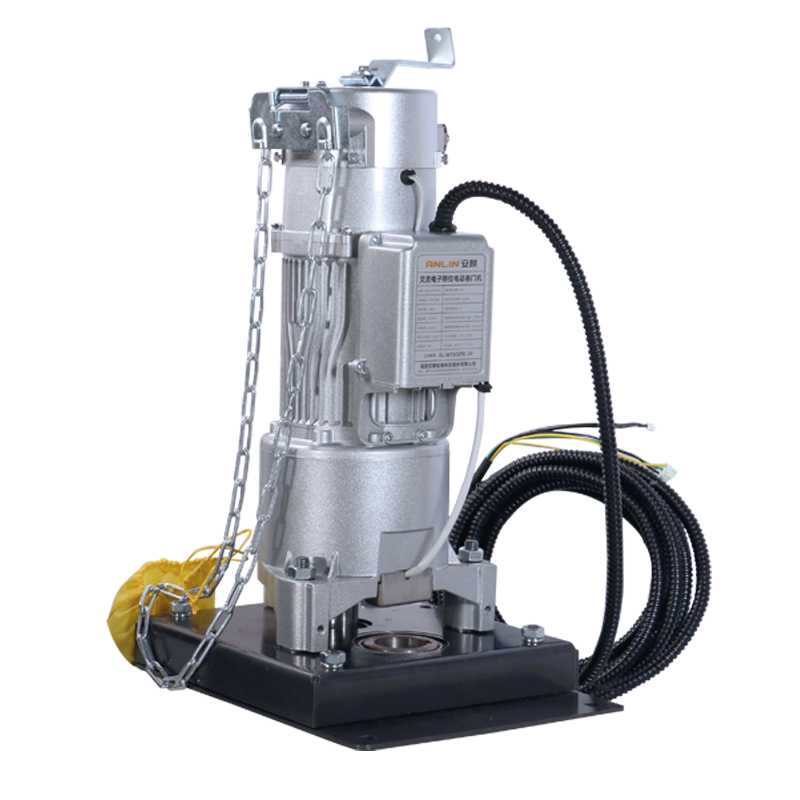

1500kg Industrial Roller Shutter Door Motor with Electronic Limit Control

Absolute Encoder and Electronic Limit Control

The built-in absolute encoder measures the complete travel of the door and provides accurate position information to the control system. During commissioning, the system can automatically learn the door’s travel range and establish the required high- and low-speed limit positions.

Electronic limit control provides more precise stopping positions and simplifies subsequent adjustment. If the door position needs to be fine-tuned during installation or maintenance, the settings can be adjusted through the control system or remote control rather than requiring direct access to the motor’s mechanical limit mechanism.

This design helps make commissioning faster and reduces the amount of manual adjustment required during installation.

Ground-Level Limit Setup Without a Ladder

One of the key advantages of this industrial roller shutter door motor is its ground-level limit adjustment.

Limit positions can be set and fine-tuned from in front of the door through the control box or wireless remote control. There is no need to repeatedly climb a ladder to access an overhead limit switch during commissioning or maintenance.

For industrial doors installed at considerable height, this can make the setup process more convenient and reduce the work involved in later position adjustments.

The casing-free electronic limit design also eliminates the need for an additional external limit box, helping simplify the overall installation and reduce extra hardware.

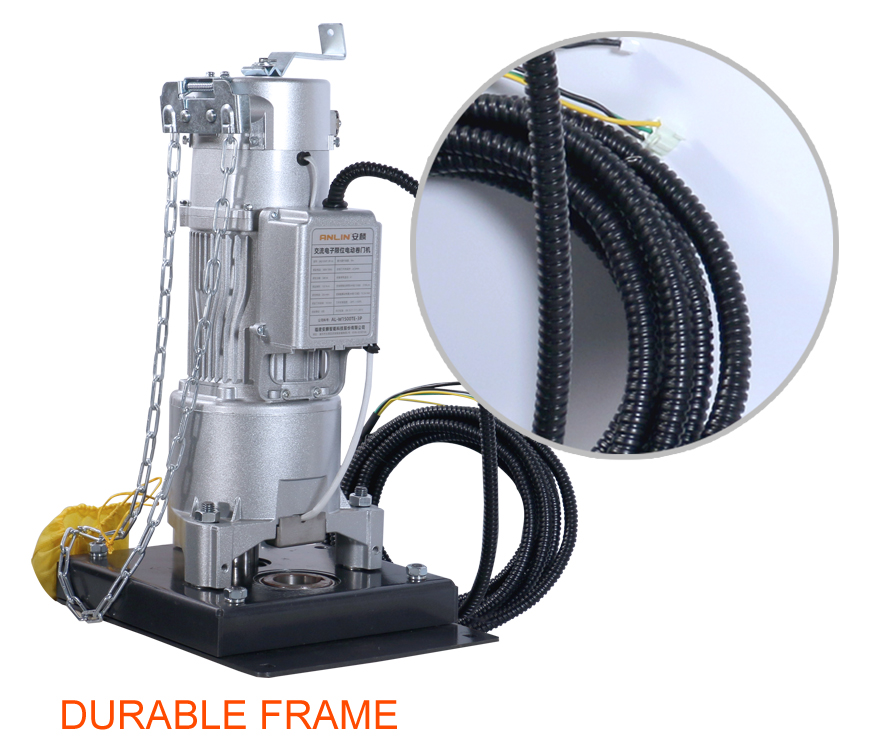

Heavy-Duty Construction for Industrial Rolling Doors

The motor features an integrally formed heavy-duty base plate designed to support high-load operation while maintaining structural stability. The robust construction is intended for demanding industrial roller shutter door applications where the motor may be required to operate repeatedly under substantial load.

The integrated structure also provides a solid mounting foundation for the motor and control components, supporting reliable operation over extended service periods.

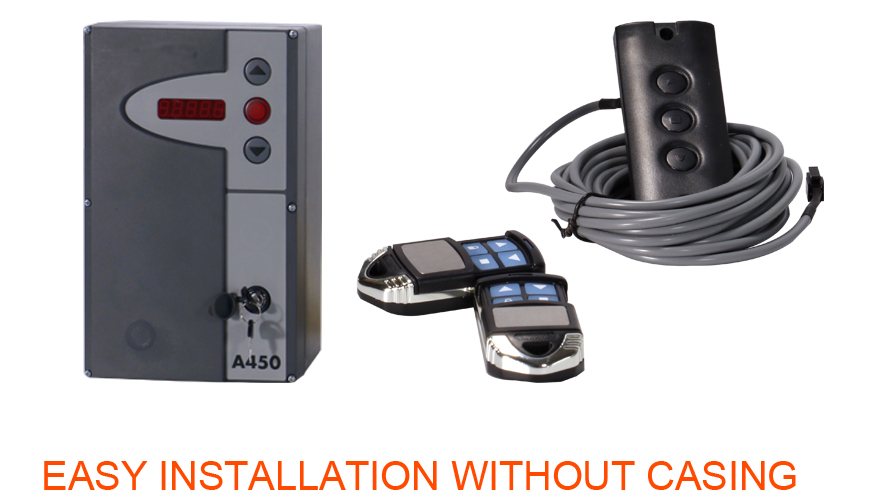

Digital Control Box and Wireless Remote

The motor system is supplied with a main digital control box equipped with operating buttons for convenient local control. Wireless handheld remote controls are also available for remote operation.

Combining local control with electronic limit adjustment gives installers and operators greater flexibility during commissioning and everyday use.

The control arrangement is designed to make common setup and operating tasks easier without unnecessarily accessing the motor itself.

What is the lifting capacity of this industrial roller shutter door motor?

The motor is designed for roller shutter and rolling door applications with a maximum rated lifting capacity of 1500kg, subject to the applicable door configuration and installation conditions.

How does the electronic limit system work?

The motor uses a built-in absolute encoder to measure the door’s travel distance. The control system uses this position information to establish and control the required upper and lower stopping positions.

Can the limit positions be adjusted without climbing a ladder?

Yes. The electronic limit system allows the door’s limit positions to be set and fine-tuned from ground level through the control box or wireless remote control, eliminating the need for routine overhead manual adjustment.

What is the advantage of an absolute encoder in a roller shutter motor?

An absolute encoder provides accurate position information for the door throughout its travel. This supports precise stopping positions and simplifies the setup and adjustment of the electronic limit system.

Does the motor require an additional external limit box?

No. The casing-free electronic limit design does not require an additional external limit box, which helps simplify installation and reduce additional hardware.

Does the motor include a control system?

The system includes a digital control box with operating buttons and wireless handheld remote controls for convenient operation and setup.

What protection features are built into the motor system?

The system includes lightning and surge protection, high positioning accuracy, anti-stuck protection and electronic limit control to support stable and reliable operation.

What warranty is provided?

The product is supplied with a 2-year warranty, together with technical and after-sales support.
