Smart 24V DC Roller Shutter Motor with Electronic Limit Control
-
Smart App & Wireless Remote Control: Enables convenient local remote operation and optional smartphone app connectivity for live status monitoring and remote door management.
-
Precision Electronic Limit Positioning: Manages upper and lower travel limits seamlessly through the control system without manual mechanical adjustments.
-
Flexible Multi-Layer Safety Integration: Supports optional infrared photo sensors, wireless safety edges, and emergency stop switches to prevent closing accidents.
-
Comprehensive Security & Alarm Compatibility: Connects with electronic side locks, bottom beam locks, smoke detectors, and audible/visual warning alarms for total access protection.
Smart 24V DC Drive Operator
Smart 24V DC Roller Shutter Motor with Electronic Limit Control
The ANLIN Smart 24V DC Roller Shutter Motor is a side-mounted drive system designed for roll-up doors that require reliable electric operation, electronic limit control and flexible safety integration. The 24V DC configuration provides a practical solution for commercial storefronts, garages, warehouses and other rolling door applications where remote operation and additional control functions are required.
The motor system supports wireless remote control and can be configured with a mobile app controller for remote door operation and status monitoring. Optional safety, locking and alarm accessories can also be integrated according to the requirements of the door system, including infrared photo sensors, wireless safety edges, electronic side locks, bottom beam locks, emergency stop switches and alarm devices.
Smart Control & Precision Electronic Limits
Smart Control for Convenient Roller Shutter Operation
The control system supports multiple operating methods to suit different installation environments and user requirements.
Along with conventional wall-mounted controls, the system can be operated by a wireless remote controller for convenient opening and closing without direct access to the motor. A compatible mobile app controller can also be added to enable smartphone-based operation and remote status monitoring.
This combination of local and wireless control makes the motor suitable for commercial doors, garage shutters, shopfronts and other applications where convenient access management is important.
Electronic Limit Control
The electronic limit system provides controlled stopping positions during door operation. It allows the upper and lower travel positions to be managed through the motor control system, helping maintain consistent door movement without relying on a conventional mechanical limit adjustment method.
The electronic limit configuration is particularly useful where installers need a cleaner control layout and convenient adjustment during commissioning and maintenance.
Flexible Accessory & Safety Integration
Safety Accessory Integration for Roll-Up Doors
Different rolling door environments have different safety requirements. The control system can be configured with optional safety accessories to provide additional protection and emergency control.
• Infrared Photo Sensor
An infrared photo sensor can be installed across the door opening to detect people, vehicles or other obstacles in the travel area. It is an optional safety component for commercial and frequently accessed rolling doors.
• Wireless Safety Edge
A wireless safety edge can be installed along the bottom of the door curtain. When an obstruction is detected during closing, the safety edge sends a wireless signal to the control system for the corresponding safety response. Using a wireless safety edge can reduce the need for additional physical wiring between the moving door section and the fixed control components.
• Emergency Stop Switch
An emergency stop switch provides a direct manual intervention point for situations requiring the motor system to stop immediately. It can be positioned at an accessible location according to the installation layout and operating requirements.
Optional Locking, Alarm & Security Functions
For commercial storefronts, warehouses and controlled-access areas, additional locking components can be incorporated into the rolling door system.
Available Security & Lock Options:
■Electronic Side Lock – provides additional electronic locking control for the side of the rolling door.
■Bottom Beam Lock – adds a physical locking point at the lower section of the door.
■Hook Padlock – provides a simple mechanical locking option for applications where manual security is preferred.
Alarm and Emergency Accessories:
The motor system can also be configured with additional alarm and warning devices where required. A smoke detector can be connected as part of an appropriate building or door safety system, while an audible and visual alarm apparatus can provide local warning when an alarm condition is triggered.
Note: Safety sensors, locks, alarm devices and mobile app controllers are optional accessories and should be selected according to the actual door system, control configuration and installation requirements.
Modular Side-Mount Installation

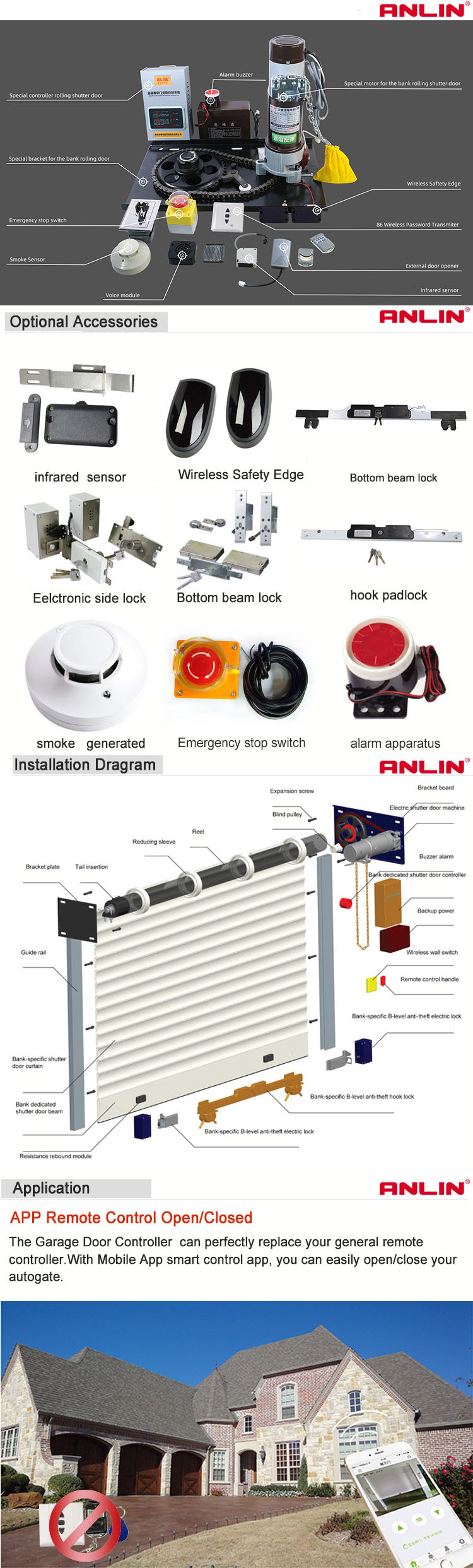

The side-mounted motor configuration is designed as part of a modular rolling door drive system. The installation layout can incorporate the motor, main and auxiliary mounting brackets, control box, backup battery, safety devices and other optional accessories.
A systemized installation diagram helps installers identify the position and connection relationship of the major components before installation. This can simplify on-site wiring, commissioning and future maintenance.
The modular arrangement also makes it easier to configure the same basic motor platform for different commercial and residential rolling door applications.
Typical Applications
The Smart 24V DC Roller Shutter Motor can be used for a range of roll-up door applications, including:
•Commercial storefront roller shutters
•Garage and residential rolling doors
•Small commercial warehouse doors
•Shopfront security shutters
•Controlled-access rolling doors
•Roll-up doors requiring wireless operation
•Rolling doors requiring additional safety accessories
The final motor configuration should be selected according to the door weight, dimensions, shaft arrangement, operating frequency and installation conditions.
Key Features at a Glance
| Feature | Description |
|---|---|
| Motor Type | 24V DC Roller Shutter Motor |
| Installation | Side-mounted configuration |
| Limit Control | Electronic limit control |
| Remote Operation | Wireless remote controller |
| Smart Control | Optional mobile app controller |
| Safety Options | Infrared sensor and wireless safety edge |
| Emergency Control | Optional emergency stop switch |
| Locking Options | Electronic side lock, bottom beam lock and hook padlock |
| Alarm Options | Smoke detector and audible/visual alarm apparatus |
| System Configuration | Modular motor, control box and accessory architecture |
Why Choose a DC Roller Shutter Motor with Smart Control?
A modern rolling door often requires more than a basic electric drive. Operators may need convenient remote access, electronic travel control, additional safety protection and flexible security options within the same door system.
This 24V DC roller shutter motor provides a practical platform for combining these functions. The basic motor and electronic limit system handle the door’s powered movement, while optional wireless, safety, locking and alarm accessories can be selected according to the application.
For installers, door manufacturers and commercial project suppliers, this modular approach provides greater flexibility when configuring different roll-up door systems.
Configure a Smart DC Roller Shutter System for Your Project
Looking for a 24V DC roller shutter motor with electronic limit control and flexible accessory integration? ANLIN can provide motor and control configurations for different rolling door applications, including wireless operation, safety sensors, electronic locks and other optional accessories.
Contact our team with your door dimensions, door weight and application requirements to discuss a suitable DC roller shutter motor solution for your project.
Frequently Asked Questions
Can this 24V DC roller shutter motor be controlled remotely?
Yes. The system supports wireless remote control for convenient opening and closing. A compatible mobile app controller can also be added when smartphone-based operation and remote status monitoring are required.
Can the motor be connected to a mobile phone app?
Yes. With the optional smart controller, the rolling door can be operated and monitored through a compatible mobile app. The exact app functions depend on the selected controller and system configuration.
What safety accessories can be used with the motor?
Optional safety accessories include infrared photo sensors, wireless safety edges and emergency stop switches. These components can be selected according to the door environment and required safety configuration.
Can electronic locks be integrated with the rolling door system?
Yes. Electronic side locks and bottom beam locks are available as optional security components. Their integration should be configured according to the selected control system and door structure.
What is the purpose of the electronic limit system?
The electronic limit system manages the upper and lower travel positions of the rolling door. It provides controlled stopping positions and simplifies travel-limit setup compared with traditional mechanical limit adjustment.
Where can this DC roller shutter motor be used?
Typical applications include commercial storefronts, garages, shopfront security shutters, warehouses and other roll-up doors requiring electric operation, wireless control or additional safety and security functions.
How should the motor be selected for a specific rolling door?
The motor configuration should be matched to the door’s weight, dimensions, shaft arrangement, operating frequency and installation conditions. For project applications, the complete door specifications should be confirmed before selecting the final motor configuration.
