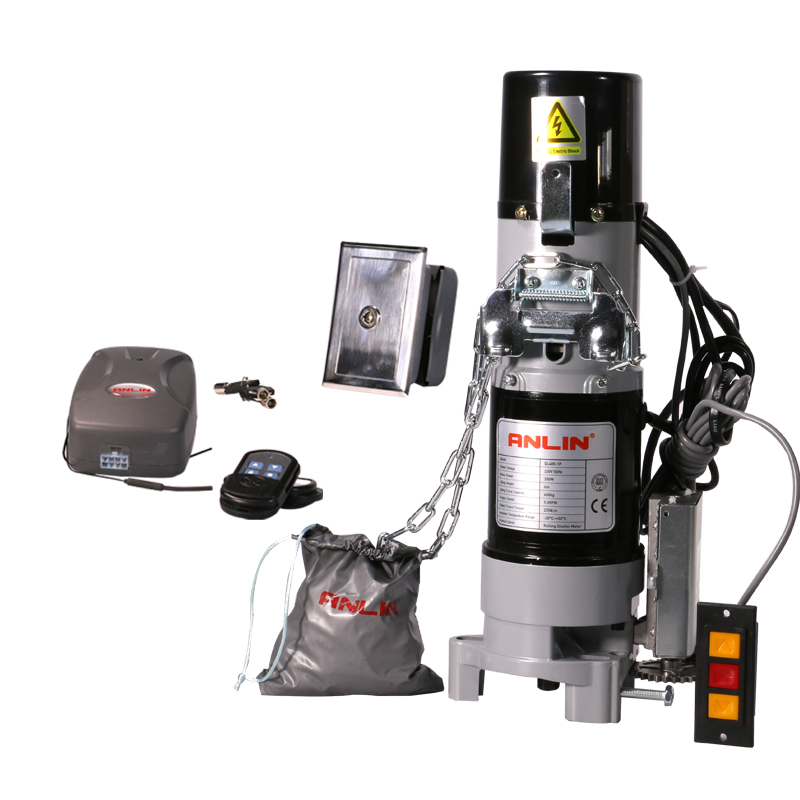

Mechanical Limit Rolling Door Motor with Chain Drive

Heavy-Duty Sprocket and Roller Chain Transmission

A key feature of this mechanical limit rolling door motor is its sprocket and roller chain drive system. Instead of relying on a direct motor-to-shaft connection, the motor transfers power through drive sprockets and a heavy-duty roller chain to the rolling door shaft.

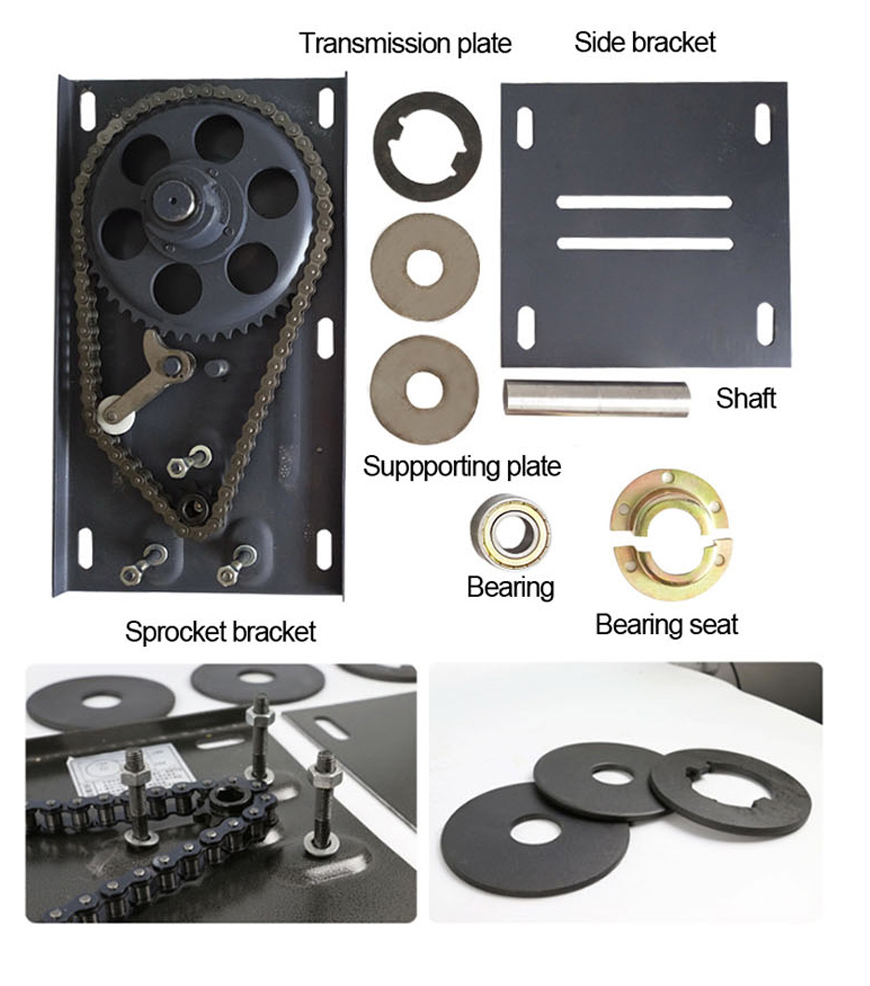

The transmission assembly includes the main drive sprocket, secondary sprocket, roller chain, shaft bearings, retaining rings, and supporting components. This configuration provides a practical solution for connecting the motor assembly to the door shaft during installation.

Chain Drive Components:

The chain-drive arrangement also makes the motor suitable for rolling door systems where the motor and door shaft require a mechanical transmission connection.

Mechanical Limit Switch for Upper and Lower Door Travel

The motor uses an integrated mechanical limit switch assembly to control the opening and closing positions of the rolling door.

During installation, the upper and lower travel limits can be mechanically adjusted according to the actual door position. The adjustment mechanism allows installers to set where the door stops when fully opened and fully closed.

This mechanical positioning system is one of the main differences between this model and electronic-limit rolling door motors.

Mechanical Limit System:

For installers and door system manufacturers, the mechanical limit design provides a straightforward method of configuring door travel without relying on an electronic absolute-position system.

Wall Control and Wireless Remote Operation

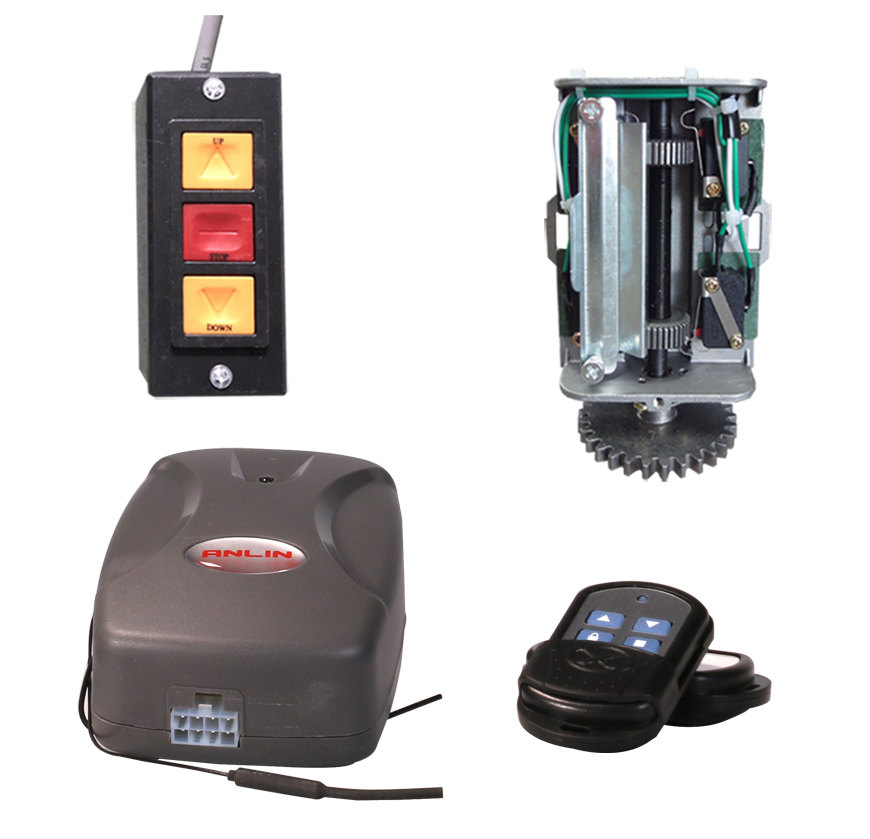

The rolling door motor can be operated through a three-button wall-mounted control station for opening, stopping, and closing the door.

A wireless remote control module is also included in the standard configuration, allowing the operator to control the rolling door remotely where required by the installation.

The combination of wall control and wireless operation gives commercial rolling door systems a practical control arrangement for daily use.

Applications for Commercial Rolling Shutter and Roller Doors

The Mechanical Limit Rolling Door Motor with Chain Drive is suitable for a range of commercial and general-purpose rolling door installations, including:

The actual motor capacity and door compatibility should be selected according to the door weight, shaft configuration, curtain size, operating frequency, and installation conditions.

What is a mechanical limit rolling door motor?

A mechanical limit rolling door motor is an electric door operator that uses a mechanical limit switch to control the upper and lower travel positions of a rolling shutter or roller door. The limit mechanism is mechanically adjusted according to the required door opening and closing positions.

How does the mechanical limit switch work?

The mechanical limit switch uses an adjustable cam mechanism to define the upper and lower stopping positions of the door. During installation, the installer adjusts the mechanical limits according to the actual travel of the rolling door.

Does the motor include the roller chain and sprockets?

Yes. The complete motor assembly includes the main transmission components such as drive sprockets, heavy-duty roller chain, bearings, retaining rings, and related mounting hardware.

What components are included with the rolling door motor?

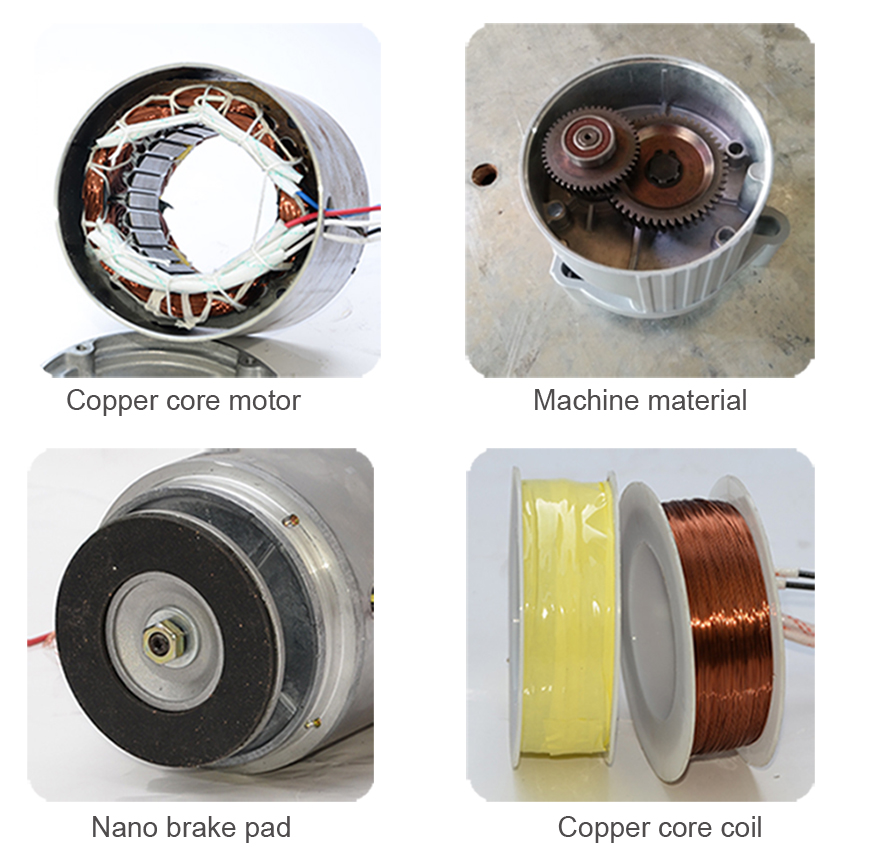

The standard assembly includes the motor drive unit, reduction gearbox, main and secondary mounting brackets, sprockets, roller chain, bearings, mechanical limit switch, three-button wall control station, and wireless remote control components.

What types of doors can this motor operate?

The motor is designed for compatible rolling shutters, roller doors, commercial garage shutters, shopfront shutters, warehouse rolling doors, and other applications using a suitable shaft and chain-drive configuration. Final motor selection should be based on the door weight, dimensions, shaft design, and operating requirements.

What is the difference between a mechanical limit and electronic limit rolling door motor?

A mechanical limit motor uses a physical mechanical switch and adjustable cam mechanism to define the door’s upper and lower travel positions. An electronic-limit motor uses an electronic position-control system. The appropriate type depends on the door design, control requirements, and installation preference.

Can ANLIN provide OEM or ODM rolling door motor solutions?

Yes. ANLIN supports OEM/ODM cooperation for international distributors, door manufacturers, and project suppliers. Product configuration, packaging, and related requirements can be discussed according to the customer’s application and order requirements.
